The Complete Guide to Rivet Weight Calculation: Solid, Hollow & Dome Head
Calculating the weight of rivets is essential for logistics, cost estimation, structural design, and quality control. Whether you’re sourcing fasteners for aerospace, construction, or manufacturing, understanding how to compute single-rivet weight ensures accurate procurement and cost management. Below, we break down the methods for three common rivet types.
⚙️ 1. Solid Rivets (Flat Head Rivets)
Solid rivets are dense, single-material fasteners typically made of steel, aluminum, or copper. Their weight depends on their cylindrical volume and density.
Calculation Steps:
- Volume Formula: Treat the rivet as a cylinder.
Volume = π × (Diameter/2)² × Length - Weight Formula:
Weight = Volume × Density
Example (Steel Flat Head Rivet):
- Diameter = 10 mm (0.01 m), Length = 20 mm (0.02 m), Steel density = 7,850 kg/m³
- Volume = π × (0.005)² × 0.02 = 1.57 × 10⁻⁶ m³
- Weight = 1.57 × 10⁻⁶ × 7,850 ≈ 0.0123 kg (12.3 grams)
💡 Practical Tip: Use simplified formulas for quick estimates:
- Steel: Weight (kg) = 0.00617 × Diameter² (mm) × Length (mm)
- Aluminum: Replace 0.00617 with 0.0022 5,9.

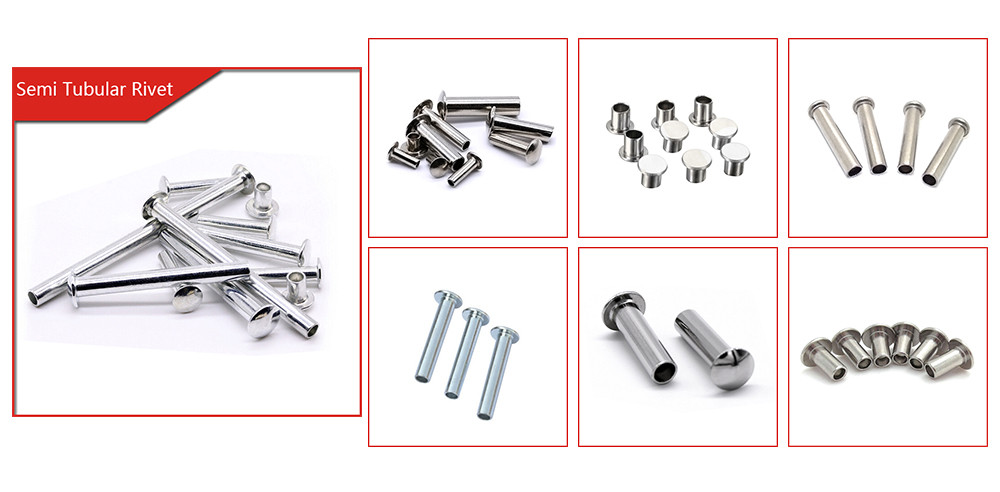

🌀 2. Hollow Rivets (Semi-Tubular or Blind Rivets)
Hollow rivets have a partially hollow body, reducing weight while maintaining grip strength. Their weight calculation requires subtracting the hollow section’s volume.
Calculation Steps:
- Outer Volume: Calculate as a solid cylinder.
- Inner Volume: Use inner diameter and wall height (not full length).
- Net Volume:
Outer Volume - Inner Volume - Weight:
Net Volume × Density
Example (Aluminum Hollow Rivet):
- Outer diameter = 5 mm, Inner diameter = 3 mm, Length = 15 mm, Wall height = 12 mm, Aluminum density = 2,700 kg/m³
- Outer Volume = π × (2.5)² × 15 = 294.5 mm³
- Inner Volume = π × (1.5)² × 12 = 84.8 mm³
- Weight = (294.5 - 84.8) × 2.7 × 10⁻⁶ ≈ 0.000566 kg (0.566 grams)
💡 Note: For metric units, use consistent mm³ and convert density (e.g., 2.7 × 10⁻⁶ kg/mm³ for aluminum) 5,6.
🛡️ 3. Dome Head Rivets (Button Head with Cap)
These rivets feature a hemispherical head and a cylindrical shank, often requiring multi-part volume calculation.
Calculation Steps:
- Head Volume: Treat as a hemisphere:
V_head = ⅔ × π × r³. - Shank Volume: Calculate as a cylinder.
- Total Volume:
V_head + V_shank. - Weight:
Total Volume × Density.
Example (Copper Dome Head Rivet):
- Head radius = 4 mm, Shank diameter = 4 mm, Shank length = 10 mm, Copper density = 8,960 kg/m³
- V_head = ⅔ × π × (4)³ = 134.0 mm³
- V_shank = π × (2)² × 10 = 125.7 mm³
- Weight = (134.0 + 125.7) × 8.96 × 10⁻⁶ ≈ 0.00232 kg (2.32 grams)
⚠️ Critical Adjustment: Add 10% scale loss for manufacturing waste (e.g., cutting, forming) to the total volume 7.
🔑 Key Considerations for Accurate Results
- Density Values: Use precise densities:
- Steel: 7,850 kg/m³
- Aluminum: 2,700 kg/m³
- Copper: 8,960 kg/m³ 5,6.
- Units: Always convert dimensions to meters or maintain consistent units (e.g., mm³ with kg/mm³).
- Scale Loss: For production batches, add 10–15% to material volume to account for processing waste 7,8.
💎 Conclusion
From flat-head solids to capped domes, rivet weight boils down to geometry + density. By deconstructing each type into basic shapes (cylinders, hemispheres, tubes) and applying density, you can estimate single-rivet weight within 5% accuracy. For batch orders, remember to incorporate scale loss—this alone can prevent cost overruns by 10–15%. Whether you’re automating procurement or optimizing designs, mastering these calculations ensures precision from blueprint to box. 🧮✨
